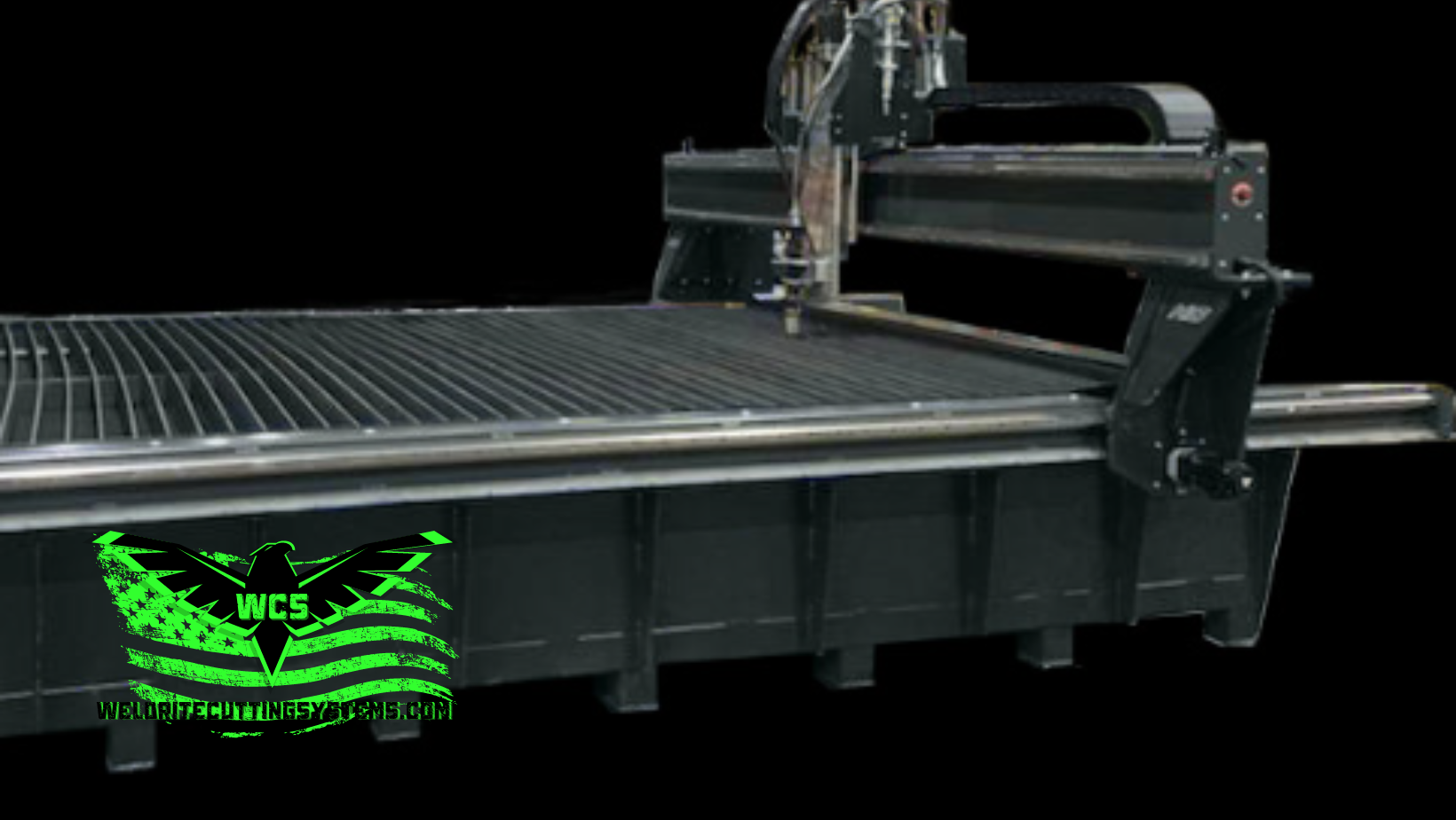

HD

High-Definition Plasma

The HD Tables come with the Flashcut HD operating system. An all-integrated CAD/CAM/CNC program, that delivers a dependable, powerful intuitive cutting solution.

HD Features

Flashcut 10 HD Industrial CAD-CAM-CNC completely integrated.

  • Electronic Components are manufactured solely in the USA

  • Windows Operating System

  • Fanless Industrial computer for adverse conditions

  • Plate Alignment

  • 750w AC Servo Motors

  • Hi Precision Nidec Shimpo Gears

  • Hi Precision sub 3″ arc Min.

  • Stingray DTHC (Digital Torch Height Control)

  • Helical Gears

  • Industrial motor wiring

  • 1000 IPM Rapid Speed

  • 10 inch clearance under gantry

  • 7 inch clearance under torch

  • True Shape AUTO Nesting

  • Turns off THC while crossing a previous cut on the sheet to prevent unwanted diving

  • Automatic Lead-in on Restart

  • THC Performance History Chart

  • Progress Meter Gives estimated time of cut completion

  • Motor Current Sensing

  • Water level of the table controlled pneumatically

  • 10″ water depth

  • Removable Slat Trays

  • 5″ slats

  • 5 Inch over-sized cut area to allow easy material placement

  • 33″ Table Height

  • Planetary gear box ( NO BELTS OR CHAINS)

  • Collision Detection

  • Feather Touch (Ohmic Sensing)

  • Magnetic Torch (Breakaway Torch)

  • Industrial Bearing for long life and rigidity

  • Welded frame and adjustable feet to level your table

  • Ball Screw Z Axis

  • Helical Gears

  • Roller ball assisted loading

  • 22″ Operation screen

  • Operator Station

HD ELITE

High-Definition Plasma

HD Tables can be paired with Hypertherm powermax, Maxpro, as well Kjellberg Smart Focus series plasma units.

HD ELITE Features

Flashcut 10 HD Industrial CAD-CAM-CNC completely integrated.

  • Electronic Components are manufactured solely in the USA

  • Windows Operating System

  • Fanless Industrial computer for adverse conditions

  • Plate Alignment

  • 750w AC Servo Motors

  • Hi Precision Nidec Shimpo Gears

  • Hi Precision sub 3″ arc Min.

  • Stingray DTHC (Digital Torch Height Control)

  • Helical Gears

  • Industrial motor wiring

  • 1000 IPM Rapid Speed

  • 12 inch clearance under gantry

  • Industrial Gantry

  • Milled Precision bearing rails

  • True Shape AUTO Nesting

  • Turns off THC while crossing a previous cut on the sheet to prevent unwanted diving

  • Automatic Lead-in on Restart

  • THC Performance History Chart

  • Progress Meter Gives estimated time of cut completion

  • Motor Current Sensing

  • Water level of the table controlled pneumatically

  • 10″ water depth

  • Removable Slat Trays

  • 5″ slats

  • 5 Inch over-sized cut area to allow easy material placement

  • 33″ Table Height

  • Planetary gear box ( NO BELTS OR CHAINS)

  • Collision Detection

  • Feather Touch (Ohmic Sensing)

  • Magnetic Torch (Breakaway Torch)

  • Industrial Bearing for long life and rigidity

  • Welded frame and adjustable feet to level your table

  • Ball Screw Z Axis

  • Helical Gears

  • Roller ball assisted loading

  • 22″ Operation screen

  • Operator Station
